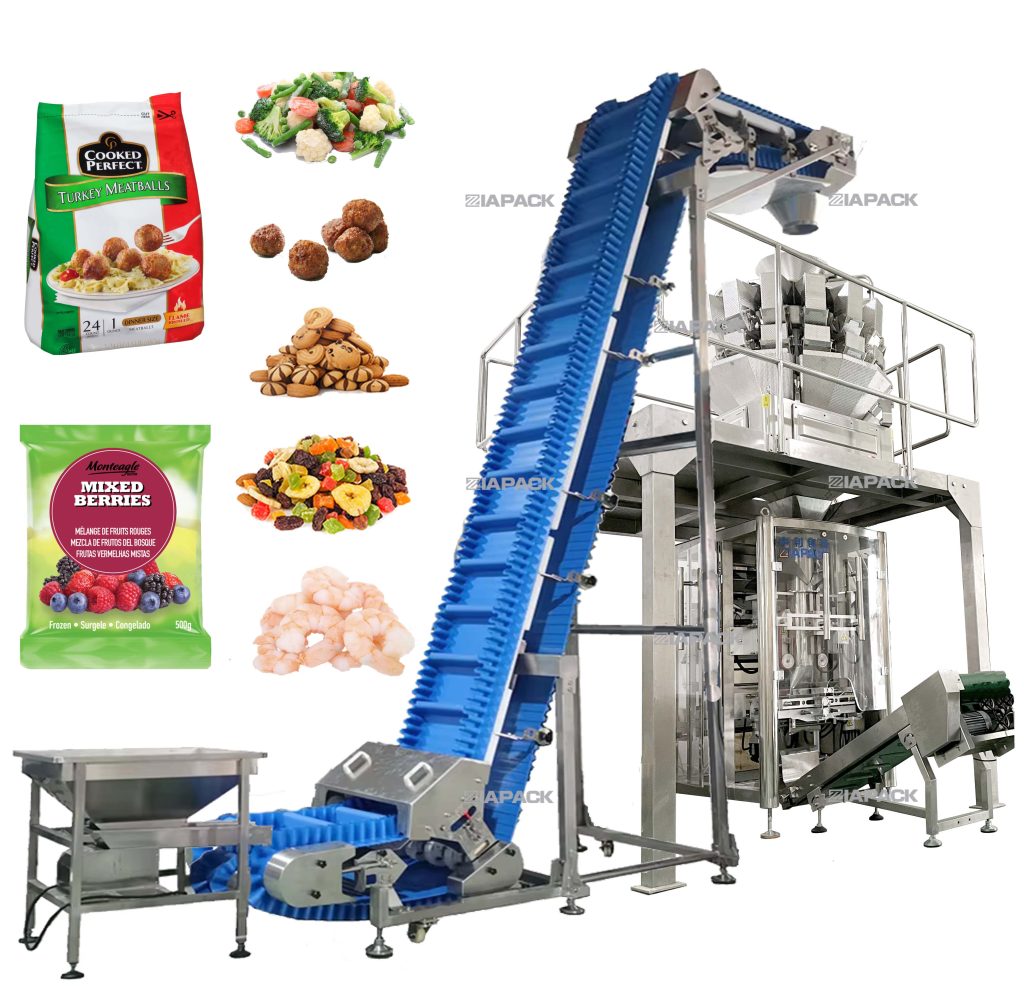

Automatic frozen food weighing filling packaging machine

پیژندنه:

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

کاریال:

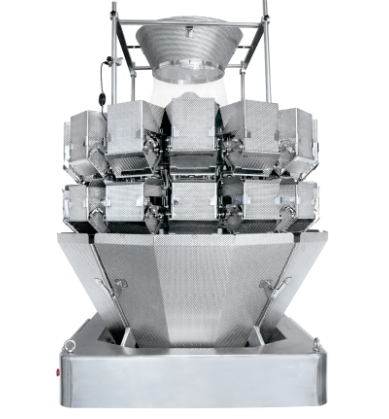

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

برخی:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

مشخصات:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

پیژندنه:

دا ماشین کولی شي په اتوماتيک ډول د کڅوړو جوړولو ، ډکولو ، سیل کولو ، چاپ کولو ، پرې کولو او داسې نورو کارونو احساس وکړي. دا ماشین کولی شي په اتوماتيک ډول د کڅوړې ډکولو او سیل کولو ته ځان ورسوي.

دا د بسته کولو ماشین د فلم فیډ لپاره د وارداتو سرو موټور غوره کوي او د مین ماشین انٹرفیس پرمختللي ټچ سکرین کاروي. عملیات ساده او ډیر اسانه دي. ټولې برخې نړیوال مشهور برانډ غوره کوي ، PLC سیمنز دی ، سروو موټرو PANASONIC دی ، ټچ سکرین سیمنز دی ، سلنډر او هوایی والو SMC دی. هغه برخې چې د موادو، کنټرول کابینې، اصلي چوکاټ سره اړیکه لري د سټینلیس فولادو څخه جوړ شوي 304

تخنیکي پیرامیټونه:

د بسته بندي سرعت (MAX): 20-50 کڅوړې / دقیقه

د کڅوړې ډول: تکیا کڅوړه .gusseted کڅوړه

Bag size: bag width 60-250mm bag length 80-350mm

د فشار شوي هوا مصرف: 0.6 MPa 350 L/min

د بریښنا اړتیا: 380V / 5.5 kW50 Hz
