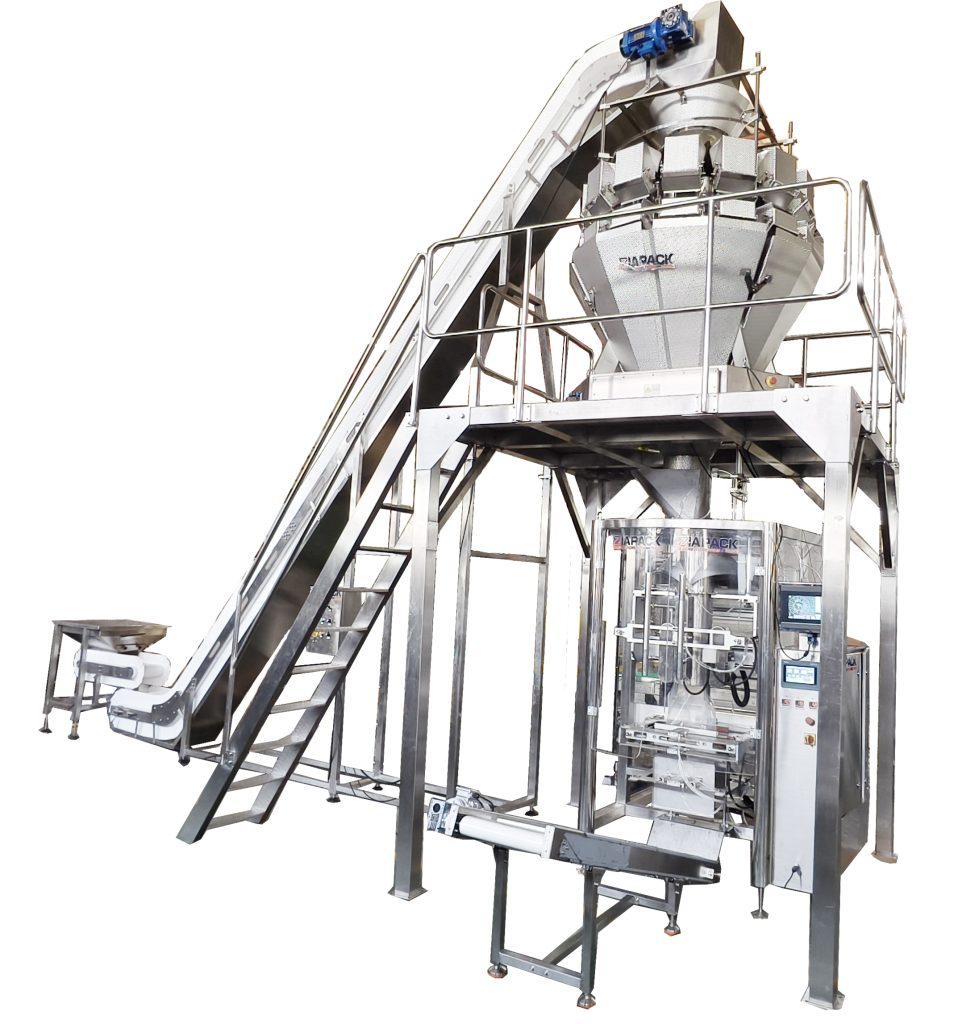

This unit machine is special design for packaging various vegetable like White radish, cucumber, lettuce, cabbage in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .
کاریال:
It is suitable for quantitative weighing of large target weight or large volume materials such as vegetable salad, fruit salad, potatoes, onions, tomatoes, cherry tomatoes and other vegetables and fruits.
برخی:
- Special load cell with high precision and high standard.
- Program recovery function can reduce operation failures, support multi-segment weight calibration.
- No products auto pause function can improve weighing stability and accuracy.
- Linear amplitude can be adjusted independently, can make the feeding more uniform.
- 15 languages available for global markets.
- 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.
پیژندنه:
دا ماشین کولی شي په اتوماتيک ډول د کڅوړو جوړولو ، ډکولو ، سیل کولو ، چاپ کولو ، پرې کولو او داسې نورو کارونو احساس وکړي. دا ماشین کولی شي په اتوماتيک ډول د کڅوړې ډکولو او سیل کولو ته ځان ورسوي.
دا د بسته کولو ماشین د فلم فیډ لپاره د وارداتو سرو موټور غوره کوي او د مین ماشین انٹرفیس پرمختللي ټچ سکرین کاروي. عملیات ساده او ډیر اسانه دي. ټولې برخې نړیوال مشهور برانډ غوره کوي ، PLC سیمنز دی ، سروو موټرو PANASONIC دی ، ټچ سکرین سیمنز دی ، سلنډر او هوایی والو SMC دی. هغه برخې چې د موادو، کنټرول کابینې، اصلي چوکاټ سره اړیکه لري د سټینلیس فولادو څخه جوړ شوي 304
تخنیکي پیرامیټونه:
| ماډل | ZL780 |
| Forming bag type | Pillow bag/gusseted bag |
| د بڼ اوږدوالی | 150-480mm by secondary film pulling the bag length can be longer |
| د بګرام چوکۍ | 120-375mm(Side width +front width ) |
| د فلم چوکۍ | ≤780mm |
| Bag forming speed | 5-15bag/min |
| Air source consumption | 0.8MPa 0.45m3/min |
| Max outer diameter of reel | ¢400mm |
| Core inner dia | ¢75mm |
| ځواک | 6KW 380V±10% 50Hz |
| د ماشین اندازه | 1650*1500*1750mm |
| د ماشین وزن | 650 کیلوګرامه |
